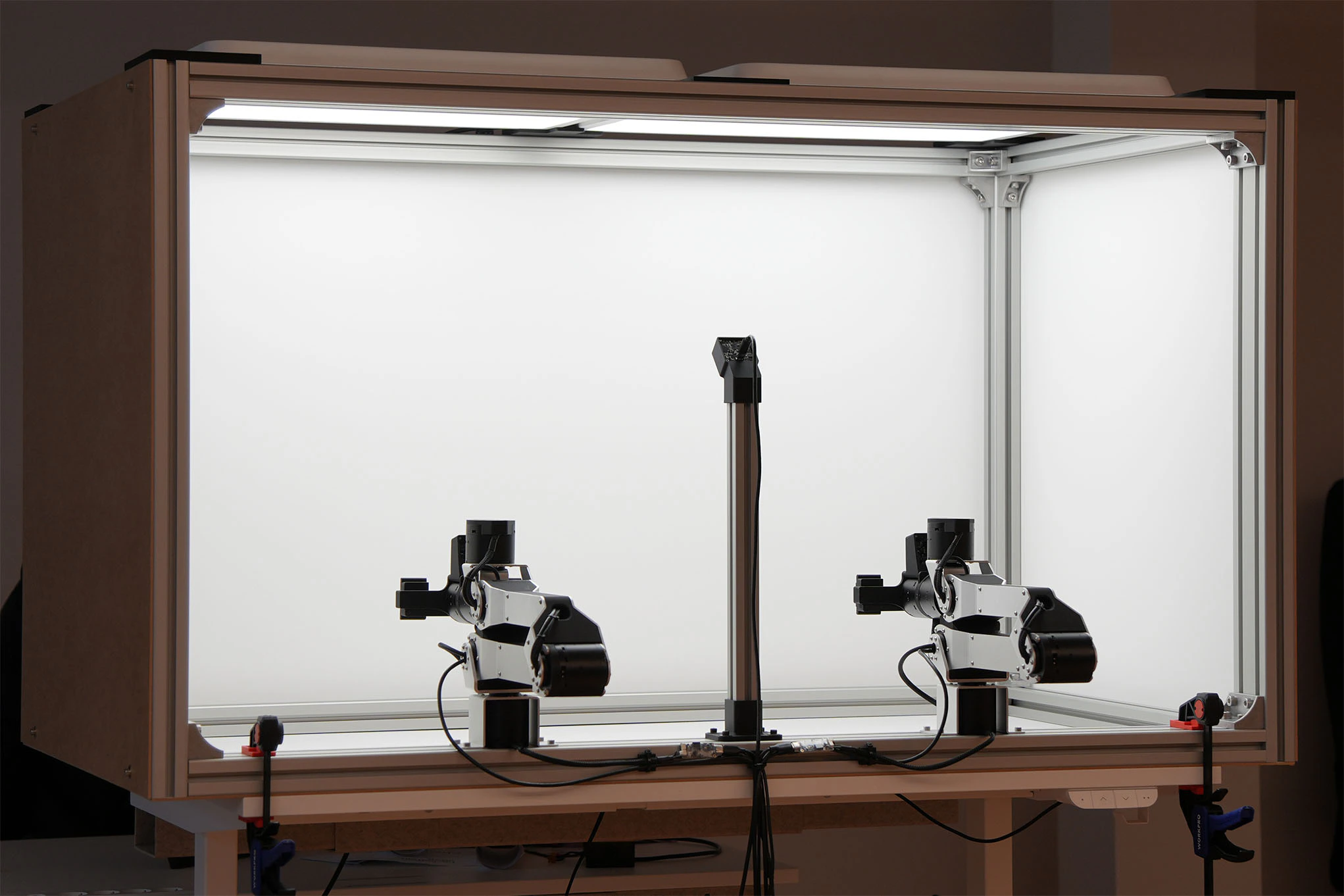

TRLC Light Box

Outer dimensions: 140x80x80cm, total weight >25kg. Place on rigid table. The assembly STEP and 3D-printed STLs can be found in hardware/light-box. Off-the-shelf parts:

Name	Qty	Total (EUR)	Weight	Source
HFS8-4040-1320	2	69,12	4.568 g	MiSUMi
HFS8-4040-680	4	71,21	4.708 g	MiSUMi
HFS8-4040-800	2	41,89	2.768 g	MiSUMi
HFS8-4080-1320	2	121,88	7.920 g	MiSUMi
HFS8-4080-800	2	73,88	4.800 g	MiSUMi
HBLFSDK8-SSP	4	38,08	724 g	MiSUMi
HBLFSNF8-SSP	20	72,83	960 g	MiSUMi
SHNTP8-5 + M5 Screws	~40	N/A	N/A	MiSUMi
LED Panel (62x62, 40W, 4400 lm, 4000K)	2	49,90	2.900 g	lichttechnik24.de
Power Cable + WAGO Clamps	1	~10,00	N/A	Amazon
White MDF/HDF Plate (140x80)	2	~20,00	N/A	local store
White MDF/HDF Plate (80x80)	2	~20,00	N/A	local store
Total		~600,00	>25kg
